How to get request body in Workflow API

I’m having some trouble finding any documentation working with API Gateway and triggering workflows. I have a path in API gateway which triggers a workflow, but I can’t seem to access the request object in the workflow, to get the information in the body, and pass it on to create objects in corteza.

Does anyone have any info regarding this?

Cheers!

Hi Rob,

the gateway functionality takes the request body and saves it in the payload variable that is reachable in the workflow.

The request object is addressable via the request variable, so you can access parts of it, ie:
request.Host, or request.Form as KVV type.

I am providing you a test workflow, which uses a function that processes data in js environment (more on that here: Integration Gateway :: Corteza Docs - note that readRequestBody function is not accessible here, but you already have the data in payload variable).

You could for example do all the parsing there, clean up the structure and feed it into an iterator step in workflow to loop through that data.

workflow:

{
  "workflows": [
    {
      "handle": "api2workflow",
      "enabled": true,
      "meta": {
        "name": "api2workflow",
        "description": "",
        "visual": null
      },
      "keepSessions": 0,
      "steps": [
        {
          "stepID": "4",
          "kind": "termination",
          "ref": "",
          "arguments": null,
          "results": null,
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "4",
              "parent": "1",
              "value": "Process Complete",
              "xywh": [
                3488,
                1960,
                200,
                80
              ]
            }
          }
        },
        {
          "stepID": "19",
          "kind": "function",
          "ref": "logError",
          "arguments": [
            {
              "target": "message",
              "expr": "payload",
              "type": "String"
            }
          ],
          "results": [],
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "19",
              "parent": "1",
              "value": "Log Payload",
              "xywh": [
                2488,
                2208,
                200,
                80
              ]
            }
          }
        },
        {
          "stepID": "25",
          "kind": "function",
          "ref": "jsenvExecute",
          "arguments": [
            {
              "target": "scope",
              "expr": "payload",
              "type": "Any"
            },
            {
              "target": "source",
              "value": "var data\n\ntry {\n\tdata = JSON.parse(input)\n} catch (e) {\n\tthrow new Error('could not parse user info payload: ' + e)\n}\n\nreturn data",
              "type": "String"
            }
          ],
          "results": [
            {
              "target": "MyData",
              "expr": "resultAny"
            }
          ],
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "25",
              "parent": "1",
              "value": "Serialize JSON and return MyData",
              "xywh": [
                2856,
                2208,
                200,
                80
              ]
            }
          }
        },
        {
          "stepID": "28",
          "kind": "function",
          "ref": "logError",
          "arguments": [
            {
              "target": "message",
              "expr": "MyData.foo",
              "type": "String"
            }
          ],
          "results": [],
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "28",
              "parent": "1",
              "value": "Log MyData.foo",
              "xywh": [
                3216,
                2208,
                200,
                80
              ]
            }
          }
        }
      ],
      "paths": [
        {
          "parentID": "19",
          "childID": "25",
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "26",
              "parent": "1",
              "points": [],
              "style": "exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;",
              "value": null
            }
          }
        },
        {
          "parentID": "25",
          "childID": "28",
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "29",
              "parent": "1",
              "points": [],
              "style": "exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;",
              "value": null
            }
          }
        },
        {
          "parentID": "28",
          "childID": "4",
          "meta": {
            "name": "",
            "description": "",
            "visual": {
              "id": "30",
              "parent": "1",
              "points": [],
              "style": "exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;",
              "value": null
            }
          }
        }
      ],
      "triggers": [
        {
          "resourceType": "system",
          "eventType": "onManual",
          "constraints": [
            {
              "name": "",
              "op": "=",
              "values": [
                ""
              ]
            }
          ],
          "enabled": true,
          "stepID": "19",
          "meta": {
            "description": "",
            "visual": {
              "edges": [
                {
                  "childID": "19",
                  "meta": {
                    "description": "",
                    "label": "",
                    "visual": {
                      "id": "20",
                      "parent": "1",
                      "points": [],
                      "style": "exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;",
                      "value": null
                    }
                  },
                  "parentID": "3"
                }
              ],
              "id": "3",
              "parent": "1",
              "value": "API POST ",
              "xywh": [
                2224,
                1960,
                200,
                80
              ]
            }
          }
        }
      ]
    }
  ]
}

You can easily import this workflow as described in Workflows :: Corteza Docs

Hopefully this answered your question, the documentation is in the works for this feature as more functionality will follow,

cheers, Peter

1 Like

Hi,
I’m wondering how can i use the body of my request using gateway call in the workflow,
I copied the same workflow structure, then created a new gateway endpoint attached to the workflow to be executed. After api call, unfortunately i got the error as mentioned in the screenshots. I used postman to call my endpoint,
Corteza version: 2021.9.5
Thanks,

test_failed

well, as far as I know, the payload is a global variable.
check this question Can workflows iterate json? - #4 by tjerman

and let me know if you need help

Hi @yajuve ,

the payload handling in integration gateway has been somewhat rewritten in 2022.3.0-rc.1, can you use that version and check the documentation on how to properly integrate gateway and workflows at Workflow processing :: Corteza Docs ?

@munawir thank you for your help.
@peter thank you for your help. Yes i found that the payload scope has been removed.
In the following you find how i could get request body from gateway call.

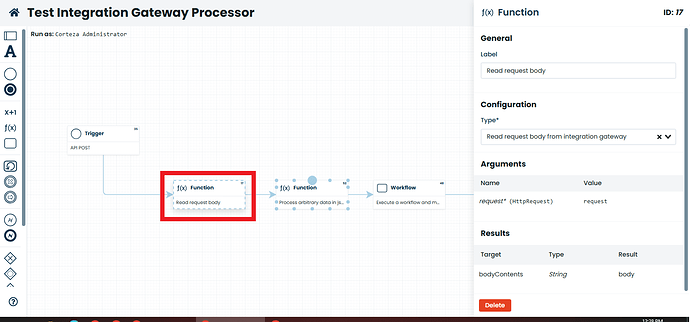

First, i replaced the payload scope by request scope in Arguments section as mentioned in the screenshot
request

Then, i parsed my input as mentioned in the documentation:

var inputData;

try {
    inputData = JSON.parse(readRequestBody(input))
} catch (e) {
    throw new Error('could not parse body request: ' + e);
}
...

As a result, it works fine now :grinning: :rocket:.
NB: tested on Corteza Version: 2022.3.0-dev.2

By the way, i have another question :thinking:. How to return a custom JSON response depending on the workflow treatment? for example returning the remaining product list or custom error message to inform the final user or at least operation status number because now the response is an empty JSON or empty TEXT. Thanks
